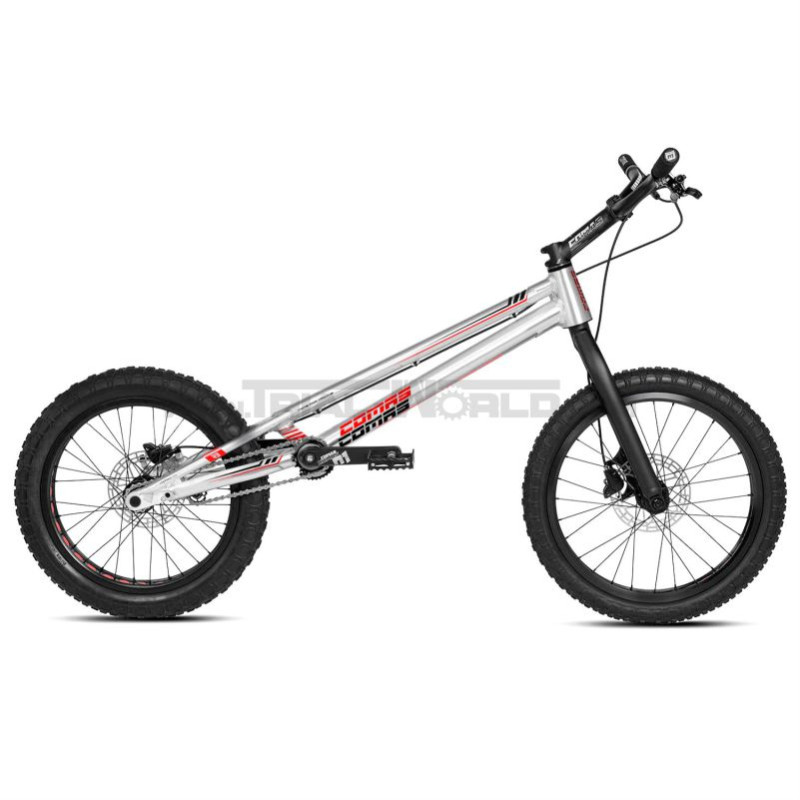

Comas R3 Pro 920mm Trialbike

Comas is a trial brand created by multi-time world champion Dani Comas from Spain.
The new Comas R3 bike sets new standards in its price segment.
For the first time in this price range, pro features are available, such as:

- Rear thru-axle

- Tapered headtube

- Integrated chain tensioner

The difference between the Pro and Factory models lies in the disc brake systems.
Pro models: Shimano / Factory models: Hope Evo X2

This bike is also available with 970mm wheelbase on request.

FRAME: 20" AL6061-T6, 1.5" headtube, CNC dropouts, Post-Mount, 12mm thru-axle
FORK: 20" AL6061-T6, CNC dropouts, Post-Mount
BASHPLATE: Ultralight CNC-machined 7075-T6 aluminum
STEM: Forged 3D aluminum, one-piece, length 130mm/20°
SPACERS: 5mm, aluminum, CNC-machined
HEADSET: Semi-integrated 1-1/8" to 1.5", alloy cups
GRIPS: Foam, medium density, 2/4mm
HANDLEBAR: 7075-T6 aluminum, double-butted, length 720mm, 31.8mm clamp, 7° upsweep, 9° backsweep, rise 115mm
BRAKES: Shimano, hydraulic, Post-Mount
BRAKE ROTORS: 160mm stainless steel, special compound & roughness
FRONT WHEEL: 20" x 28H, 100mm spacing, Disc
REAR WHEEL: 19" x 32H, 116mm spacing, Disc with M12 x 1.5mm pitch thru-axle, AL6061-T6, overall length 144mm
TUBES: Ultralight, 20" x 1.75, thickness: 0.8mm
BOTTOM BRACKET: ISIS standard, 1.37" x 24 tpi thread, 68mm shell width, 123mm axle length
CRANKS: Forged aluminum, ISIS standard, length 160mm, 33mm offset
FREEWHEEL: 18T, 108 engagement points, width 17mm
CHAIN: Single-speed 1/2" x 3/32"
SPROCKET: Threaded sprocket AL7075-T6, width 12mm, 1.37" x 24 tpi thread
CHAIN TENSIONER: Integrated, 10T pulley, CNC-machined, ceramic bearings
TIRES: Trial Front 20" x 2.00 / Rear 19" x 2.60
PEDALS: Cage pedals, 9/16" thread, aluminum

Geometry:

Wheelbase: 920mm
BB Height: +55mm
Chainstays: 327mm
Head Angle: 72º
Color: Polished Silver Alloy
Weight:
